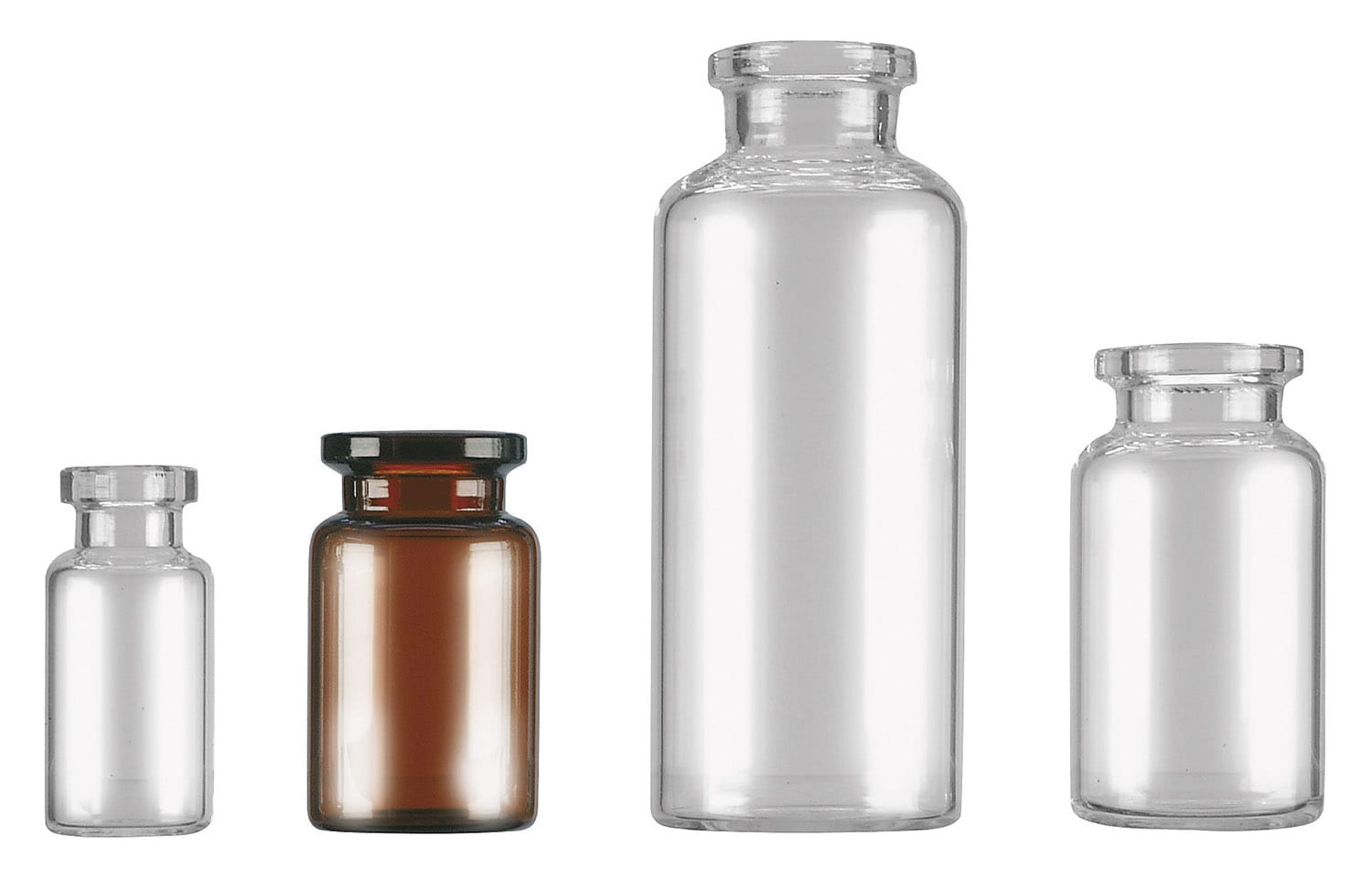

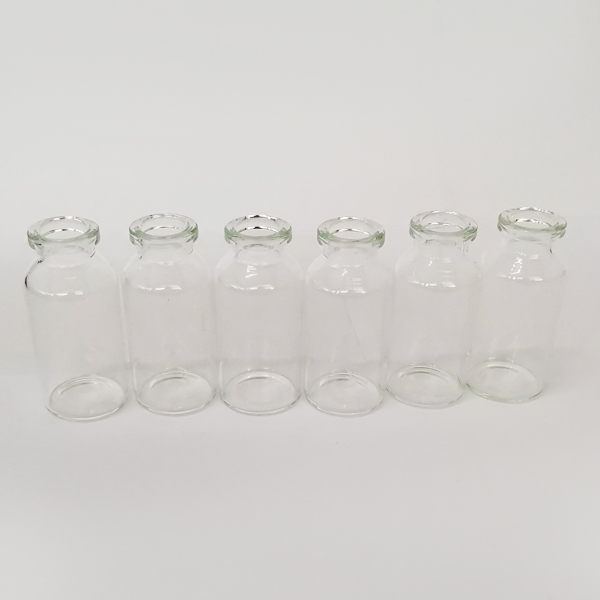

moulded glass vials for injection vials

Moulded Injection Vial for Antibiotics,we have 5ml-100ml,various glass vials,you can choose the type for you.

Product Detail

Size(ml)	vertical axis deviation a_max	H₁		D₁		D₂		D₃		S₁		S₂		D₄	D₅
		Mea sure	tol	Mea- sure	tol	Mea- sure	tol	Mea- sure	tol	Mea- sure	tol	Mea- sure	tol	max	min
5ml	1.1	41.3	±0.5	20.8	±0.4	20.0	±0.2	12.6	±0.2	3.8	±0.3	3.0	±1.2	17.0	11.5
7ml		40.8		22.1
8ml	1.2	46.8	±0.6	23.0
10ml	1.4	53.5		25.4
15ml	1.5	58.8		26.5	±0.5		±0.3
20ml		58.0		32
25ml		58.0		36
30ml	1.6	62.8	±0.7	36
50ml	1.9	73.0	±0.8	42.5	±0.8
100ml	2.4	94.5	±0.9	51.6
